1.3M H.264 P2P Network IP Camera 6pcs Big IR LED Metal Case Bullet Camera IP-FM513
Features
- 960P/720P Wide-Dynamic Low Illumination CMOS
- Support P2P, Plug & Play, No need for DDNS, No need for Port Mapping and no need for Static IP
- Support IE Browser for Internet Monitoring
- Support Standard ONVIF Protocol
- Built-in Automatic IR Cut Filter (ICR)
- Support Dual-Stream Function, Network Bandwidth Adaptive Function
- Support Multiple Network Protocols
- Support Multi-User Online Monitoring at the same time
- Support AE sensitivity can be adjusted
- Support Motion Detection, Image Loss Alarm Function
- Support Exposure Mode, Backlight Compensation, Automatic Gain
- Support Day/Night Digital Nosie Reduction Function
- Support Digital Zoom Camera Function
- Support Mobile Phone Monitoring (Android / IOS)
- Support Multiple Languages
| Model No. | IP-FM513 |
| Main Chip | HIS3518E V201 |
| Image Sensor | Aptina 0130 |
| Day&Night Switch | Built-in ICR Automatic Switching |
| Shutter | 1/25 ~ 1 / 10,000 sec |
| White Balance | Auto |
| BLC | Support Backlight Compensation |
| Digital Noise Reduction | Support 3D Digital Noise Reduction |
| Wide Dynamic | N/A |
| Motion Detection | Support Motion Detection |
| Masking Area | N/A |
| Mirroring | Support |
| OSD Menu | Support OSD Settings, free to move the position on the screen |
| System Maintenance | System Maintenance |
| Compression Format | H.264 |
| Main Stream (Highest) | 1280 x960 |
| Sub Stream (Highest) | 704x576 |
| Third Stream (highest) | N/A |
| Frame Rate | PAL: 25fps / NTSC: 30fps (60Hz) |
| Bit Rate | 64Kbps ~ 12Mbps CBR / VBR adjustable |
| Image Adjustment | Brightness, Saturation, Color, Contrast, Sharpness |
| Ethernet Port | RJ45 Port 10 / 100M Base-T |
| Wireless Network Card | N/A |
| Network Protocol | HTTP / TCP / IP / IPv4 / UPNP / RTSP / UDP / SMTP / NTP / DHCP / DNS / IP Filter / PPPoE / DDNS / IP Search |
| ONVIF protocol | Support ONVIF protocol |
| Maximum Users | At the same time can support 5 users login |
| Client | iPhone / iPad / Android / Windows |
| Audio Compression Format | G711a |

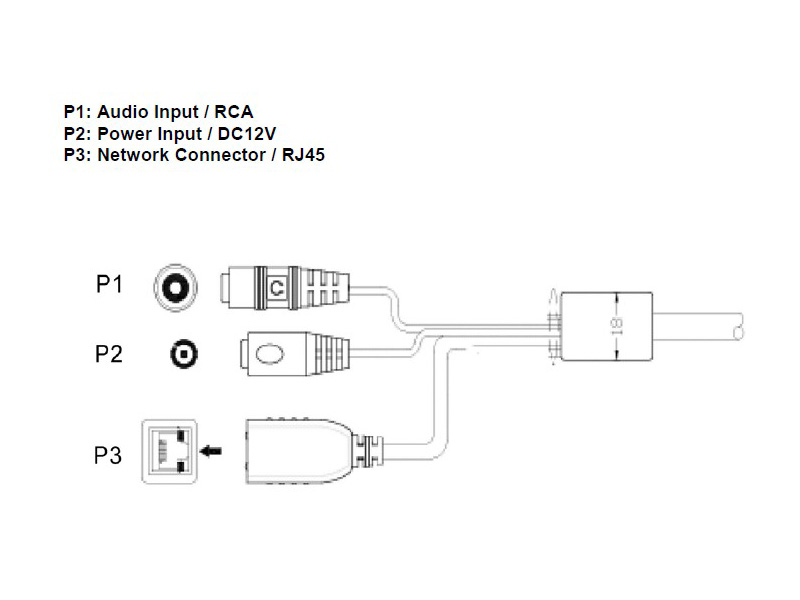

| Aduio Input | Support 1 Channel Audio Input, RCA |
| Alarm Input / Output | N/A |
| POE | Optional |
| Lens | Standard: 4.0mm/ Optional: 3.6/6.0/8.0/12.0mm |
| IR LEDs/ Distance | 6 Array IR LED / 35~40M |
| Material / Color | Metal Material / Gray |
| Working Environment | -10°C ~ 60°C |
| Waterproof | IP66 |
| Power Supply | DC12V ± 10% |
| Dimensions | Φ60x140 mm |
| Net Weight | 650g |
※ Design and specifications are subject to change without notice
