1.3M H.264 WDR Network IP Camera 12pcs IR LED Metal Case UFO Dome Camera

1.3M H.264 WDR Network IP Camera 12pcs IR LED Metal Case UFO Dome Camera IP-SM613

Features

  • 960P/720P Wide-Dynamic Low Illumination CMOS
  • Support H.264 Video Compression Format
  • Supports Wide Dynamic, 3D Noise Reduction, Backlight Compensation, Auto White Balance
  • Support Standard ONVIF Protocol which can be accessed by third-party equipments
  • Built-in Automatic IR Cut Filter (ICR)
  • Support Triple-Stream Function, Network Bandwidth Adaptive Function
  • Support Privacy Mask which can set up 4 Area
  • Support Audio Input for perfect combination
  • Support Motion Detection, Trigger Automatically Send Alert to Mailbox
  • Support FTP Function, can access NAS for recording
  • Support OSD Settings, Free to move the position on the screen
  • Support Network Automatic Timing Function to ensure that time is correct
  • Support Digital Zoom Camera Function
  • Support Mobile Monitoring (Android / IOS), Web & Client Software (VMS)
  • Support FTP and Automatic Maintenance Function
  • Support Multiple Languages
Add Cart

Model No. IP-SM613
Main Chip HIS3518E V201
Image Sensor H65
Day&Night Switch Built-in ICR Automatic Switching
Shutter 1/25 ~ 1 / 10,000 sec
White Balance Auto
BLC Support Backlight Compensation
Digital Noise Reduction Support 3D Digital Noise Reduction
Wide Dynamic Support Digital Wide Dynamic
Motion Detection Support Motion Detection
Masking Area 4 area
Mirroring Support
OSD Menu Support OSD Settings, free to move the position on the screen
System Maintenance System Maintenance
Compression Format H.264
Main Stream (Highest) 1280x960
Sub Stream (Highest) 704x576
Third Stream (highest) N/A
Frame Rate PAL: 25fps / NTSC: 30fps (60Hz)
Bit Rate 64Kbps ~ 12Mbps CBR / VBR adjustable
Image Adjustment Brightness, Saturation, Color, Contrast, Sharpness
Ethernet Port RJ45 Port 10 / 100M  Base-T
Wireless Network Card N/A
Network Protocol HTTP / TCP / IP / IPv4 / UPNP / RTSP / UDP / SMTP / NTP / DHCP / DNS / IP Filter / PPPoE / DDNS / IP Search
ONVIF protocol Support ONVIF protocol
Maximum Users At the same time can support 8 users login
Client iPhone / iPad / Android / Windows
Audio Compression Format G711a

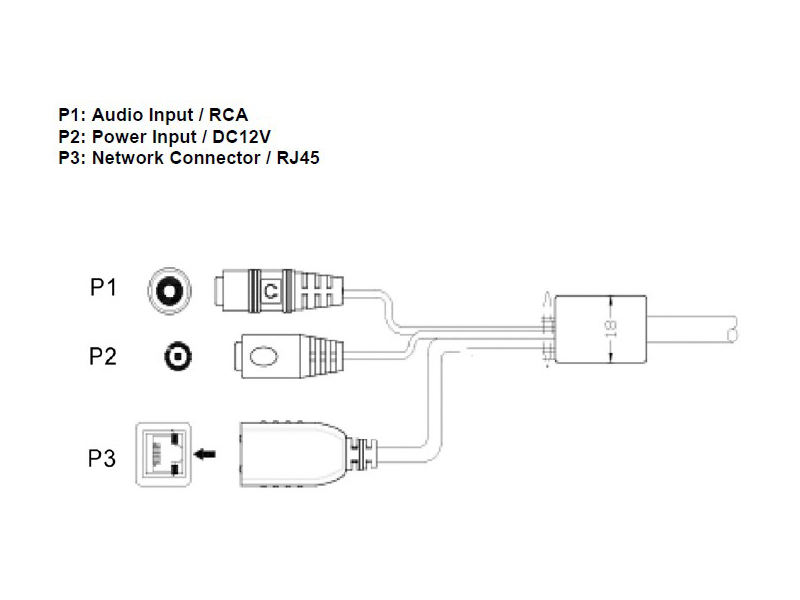

Aduio Input Support 1 Channel Audio Input, RCA
Alarm Input / Output N/A
POE Optional
Lens Standard: 4 mm, Optional: 3.6 / 6 / 8 / 12mm
IR LEDs/ Distance 12pcs IR LED / 15~20M
Material / Color Metal Material / Beige
Working Environment -10°C ~ 60°C
Waterproof  IP66
Power Supply DC12V ± 10%
Dimensions Φ92x50 mm
Net Weight 450g

※  Design and specifications are subject to change without notice
