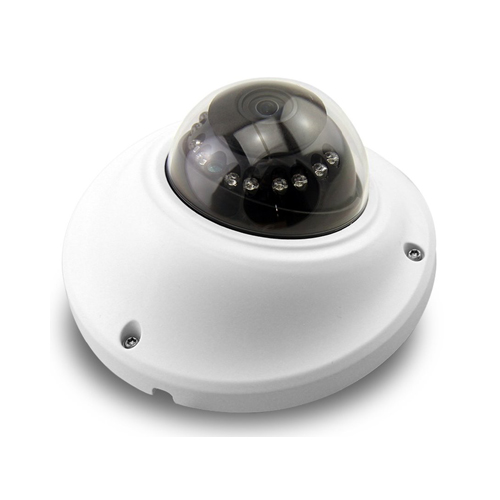

4M H.265 WDR Network IP Camera 12pcs IR LED Metal Case UFO Dome Camera IP-SM645
Features
- 4M/1080P/960P/720P Wide-Dynamic Low Illumination CMOS
- Support H.264 / H.265 / MJPEG Video Compression Format
- Supports Wide Dynamic, 3D Noise Reduction, Backlight Compensation, Auto White Balance
- Support Standard ONVIF Protocol which can be accessed by third-party equipments
- Built-in Automatic IR Cut Filter (ICR)
- Support Triple-Stream Function, Network Bandwidth Adaptive Function
- Support Privacy Mask which can set up 4 Area
- Support Audio Input for perfect combination
- Support Motion Detection, Trigger Automatically Send Alert to Mailbox
- Support FTP Function, can access NAS for recording
- Support OSD Settings, Free to move the position on the screen
- Support Network Automatic Timing Function to ensure that time is correct
- Support Digital Zoom Camera Function
- Support Mobile Monitoring (Android / IOS), Web & Client Software (VMS)
- Support FTP and Automatic Maintenance Function
- Support Multiple Languages
Model No. | IP-SM645 |
Main Chip | HIS3516D |
Image Sensor | OV4689 |
Day&Night Switch | Built-in ICR Automatic Switching |
Shutter | 1/25 ~ 1 / 10,000 sec |
White Balance | Auto |
BLC | Support Backlight Compensation |
Digital Noise Reduction | Support 3D Digital Noise Reduction |
Wide Dynamic | Support Digital Wide Dynamic |
Motion Detection | Support Motion Detection |
Masking Area | 4 area |
Mirroring | Support |
OSD Menu | Support OSD Settings, free to move the position on the screen |
System Maintenance | System Maintenance |
Compression Format | H.264 / H.265 / MJPEG |
Main Stream (Highest) | 2592 x1520 |
Sub Stream (Highest) | 640x360 |
Third Stream (highest) | 640x360 |
Frame Rate | PAL: 25fps / NTSC: 30fps (60Hz) |
Bit Rate | 64Kbps ~ 12Mbps CBR / VBR adjustable |
Image Adjustment | Brightness, Saturation, Color, Contrast, Sharpness |
Ethernet Port | RJ45 Port 10 / 100M Base-T |
Wireless Network Card | N/A |
Network Protocol | HTTP / TCP / IP / IPv4 / UPNP / RTSP / UDP / SMTP / NTP / DHCP / DNS / IP Filter / PPPoE / DDNS / IP Search |
ONVIF protocol | Support ONVIF protocol |
Maximum Users | At the same time can support 8 users login |
Client | iPhone / iPad / Android / Windows |
Audio Compression Format | G711a |

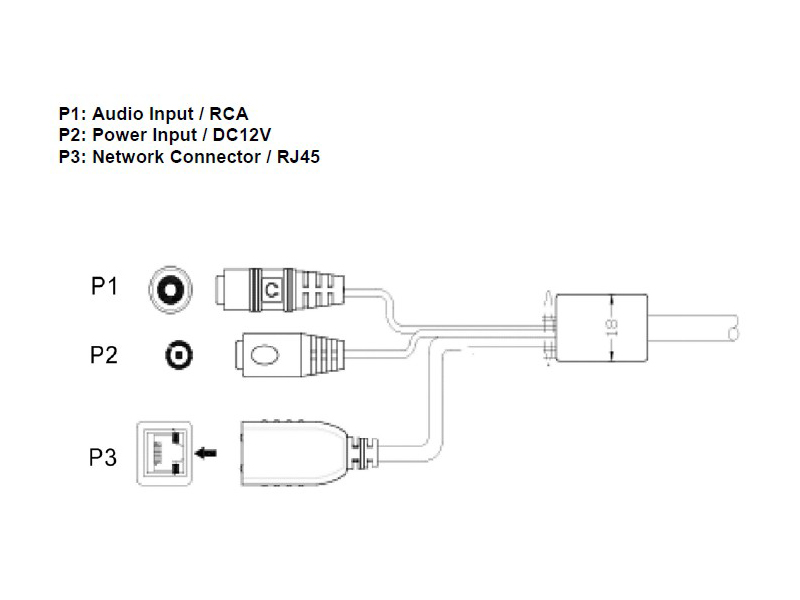

Aduio Input | Support 1 Channel Audio Input, RCA |
Alarm Input / Output | N/A |
POE | Optional |
Lens | Standard: 4 mm, Optional: 3.6 / 6 / 8 / 12mm |
IR LEDs/ Distance | 12pcs IR LED / 15~20M |
Material / Color | Metal Material / Beige |
Working Environment | -10°C ~ 60°C |
Waterproof | IP66 |
Power Supply | DC12V ± 10% |
Dimensions | Φ92x50 mm |
Net Weight | 450g |
※ Design and specifications are subject to change without notice
