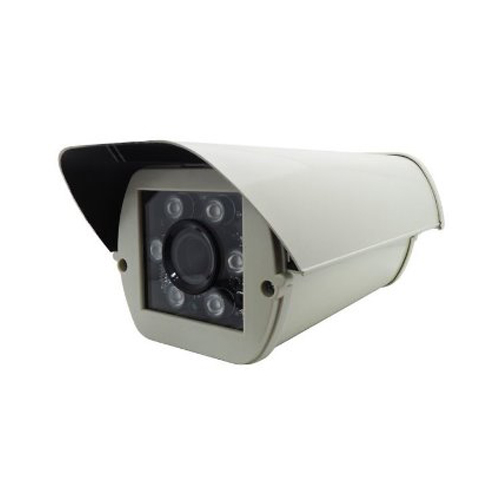

2M/1080P AHD/TVI/CVI SONY Sensor 6pcs Big IR LED Waterproof Varifocal Camera TC-ZV720
Features
- 2 Megapixel Color CMOS
- Advanced Bright Color Separation, Signal Filtering, 3D Noise Reduction Technology
- AHD Video Output, No Delay& Images Lossless, Long Distance Transmission
- Built-in IR-Cut Filter, Low Illumination, Auto Color to Black, Day&Night Monitoring
- Built-in Digital Wide Dynamic, Strong Light Suppression, Motion Detection, Privacy Mask
- Standard AHD / TVI / CVI Encoding Compression Format, Compatible with Major Brands' DVR
- Compatible with 1080P / 720P / 960H / D1 Switching output
- Coaxial Transmission Distance can be up to 500 Meters
- Support UTC Control
- Support 2DNR / 3DNR
- Support NTSC / PAL System
- Support Multi-Language
| Model | TC-ZV720 |
| Image Sensor | Sony IMX323 |
| Minimum Illumination | 0.01Lux/F1.2 AGC ON / 0.001Lux/F1.0 with IR |
| Resolution | 1920 (H) x1080 (V) / 1080P |
| Effective Pixels | Auto, 1/50(60)~1/100,000sec |
| SNR | ≥ 50dB |
| System | NTSC/PAL |
| Video Output | AHD/TVI/CVI/CVBS |
| AGC | Level 10~15 |
| D-WDR | OFF/ON(Level 10~8) / Auto |
| S/N | More than 58db (AGC OFF) |
| Day/Night Mode | ICR automatic switch |
| Motion Detection Area | 4 area |
| Masking Area | 1~15 area |
| White Balance | ATW/ AWC-SET/ indoor/ outdoor/ Manual |
| Mirror | Vertical/ Level/ Vertical+Level/ OFF |
| Digital Noise | 2DNR/ 3DNR |
| BLC/ HLC | Support |
| UTC | Support |
| IR LEDs/ Distance | 6 Array IR LED / 45~50M |
| Lens | 2.8~12mm |
| Working Environment | -100C~500C RH85% |
| Working Humidity | < 90% |
| Waterproof | N/A |
| Cable | DC/BNC/Switch |
| Power Supply | DC12V±10% |
| Dimensions | 147(W) x 313(L) x 115(H) mm |
| Weight | 1150g |
※ Design and specifications are subject to change without notice
